产品参数
| 泵浦型号 | 口径（mm） | 最大流量 (L/min) | 最高扬程 (m) | 电机 | ||
| 入口 | 出口 | 相数 | 功率 | |||
| LGD-4012 | DN40 | DN40 | 260 | 10 | 三相 | 0.75kW |
| LGD-4022 | DN40 | DN40 | 350 | 17 | 三相 | 1.5kW |
| LGD-5032 | DN50 | DN50 | 530 | 21 | 三相 | 2.2kW |
| LGD-5052 | DN50 | DN50 | 580 | 27 | 三相 | 3.7kW |
| LGD-6552 | DN65 | DN50 | 680 | 26 | 三相 | 3.7kW |
| LGD-6552X | DN65 | DN50 | 800 | 28 | 三相 | 4.0kW |
Model Description
LGD – 40 – 1 – 2 – CA – S – H – E – X
one two three four five six seven eight nine
1. Model: LGD
2. Entrance diameter: 40:1-1/2?, 50:2?,65:2-1/2?
3. Horsepower: 1:1HP, 2; 2HP, 3:3HP, 5:5HP
4. Extremes: 2:2p, 4:4p
5. Rotating ring: CA-CARBON,S-SSIC
6. Fixed ring: CE-CERAMIC,S-SSIC
7. Spring: H-HASTELLOY-C,S-SUS316
8. O-ring material: V-VITON,N-NBR,E-EPDM
9. Increase flow or head design: X

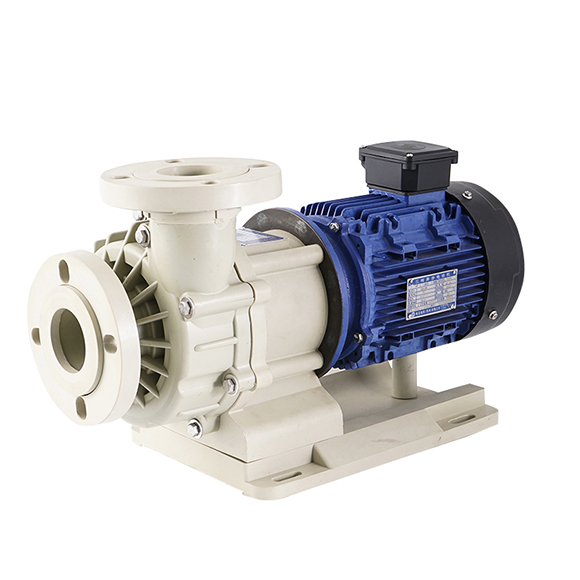

Product Features
The pump is made of FRPP and PVDF plastic steel materials, which have strong corrosion resistance, strong acid and alkali resistance.
The pump adopts a special structural design and does not require an external cooling circulation device.
The impeller adopts a one-piece molding design, with a long service life and high work efficiency.
The operating temperature is within 70 ℃.
Suitable for various acid-base liquid circulation, electroplating, wastewater, chemical and some special occasions.
