Metering pump flow adjustment is one of the core features that ensures accurate dosing and precise chemical delivery. By controlling the stroke length and stroke frequency, users can easily achieve the desired flow rate for various applications.
1. Principle of Flow Adjustment
The flow rate of a metering pump is mainly determined by two key factors:
-
Stroke Length (Displacement per Stroke) – determines how much liquid is discharged with each stroke.
-
Stroke Frequency (Pulses or RPM) – determines how many strokes occur per unit time.
? Flow Rate (Q) ≈ Stroke Length × Stroke Frequency
By adjusting either or both parameters, operators can finely tune the pump’s output to match process requirements.
2. Common Flow Adjustment Methods
(1) Mechanical Adjustment (Stroke Length Control)
-
How it works: Adjust the stroke length manually or via an electric actuator on the pump head.
-
Features: High accuracy and stable flow rate.
-
Applications: Ideal for systems requiring constant and stable chemical dosing.
-
Advantages: Flow rate remains stable regardless of discharge pressure.
-
Disadvantages: Slow response; not suitable for automated remote control.
(2) Electrical Adjustment (Stroke Frequency Control)
-
How it works: Control the pump’s motor speed using a frequency converter (VFD) or adjust the pulse frequency for solenoid-driven diaphragm pumps.
-
Features: Fast response; easy to integrate into automatic control systems.
-
Applications: Suitable for systems requiring variable flow linked to process signals.
-
Advantages: Enables PID closed-loop control.
-
Disadvantages: Slightly less accurate than mechanical adjustment.
(3) Combined Adjustment (Stroke + Frequency)
-
How it works: Adjust both stroke length and frequency for wider control range.
-
Features: Provides flexible and precise flow control.
-
Applications: Complex chemical dosing or fully automated industrial processes.
3. Practical Operation Steps

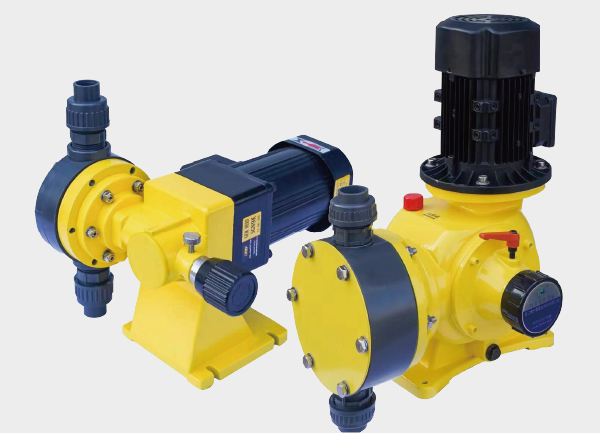

(Example: Mechanical Diaphragm Metering Pump)
-
Pre-check before operation: Ensure all pipelines, valves, and seals are in good condition. Fill the pump head with liquid.
-
Set initial stroke: Start from 0%, then slowly increase to the target value (e.g., 50%–70%).
-
Observe operation: After starting, ensure stable discharge and no air bubbles.
-
Fine-tune: Adjust according to flowmeter readings or process requirements.
4. Important Notes
-
Always adjust the stroke while the pump is running to prevent mechanical stress.
-
Do not exceed the rated pulse frequency for solenoid pumps — overheating may occur.
-
Calibrate the flow rate regularly to maintain dosing accuracy.
-
Most metering pumps operate accurately between 10%–100% of rated capacity; below 10%, accuracy decreases.
5. Summary Table
| Adjustment Method | Control Parameter | Key Features | Typical Applications |
|---|---|---|---|
| Mechanical | Stroke Length | High accuracy, slow response | Constant dosing systems |
| Electrical | Frequency/Speed | Fast response, easy automation | Variable flow control |
| Combined | Length + Frequency | Wide range, precise control | Automated chemical dosing |
6. Conclusion
Proper flow adjustment ensures that metering pumps deliver chemicals safely, efficiently, and accurately. Choosing the right adjustment method depends on your process control needs — whether you require stable dosing or dynamic automated control.
