Industrial filters play a vital role in modern production lines by removing suspended solids, particles, and contaminants from liquids or gases.
Their core working principle is based on selective separation through filter media — allowing clean fluid to pass while retaining unwanted impurities.
This process ensures product quality, equipment protection, and environmental compliance across chemical, food, water treatment, and manufacturing industries.

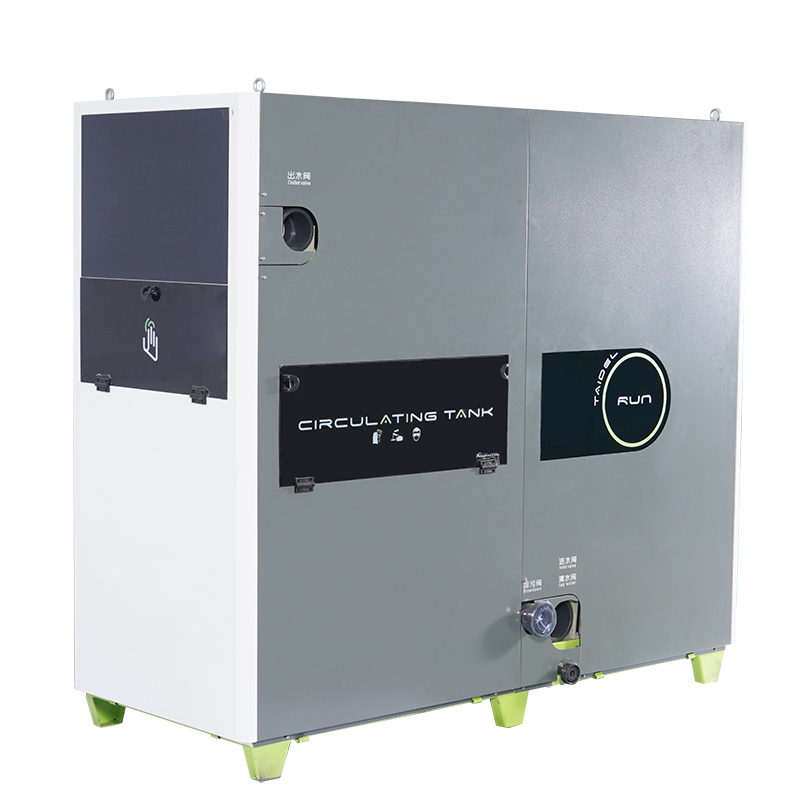

Industrial Filters
1. General Filtration Process — The 5-Step Principle
Although designs vary, all industrial filtration systems follow a similar five-step process:
Inlet → Filtration → Retention → Discharge → Maintenance.
Step 1: Fluid Inlet
Contaminated fluid enters the filter housing through an inlet pipeline.
The sealed housing prevents leakage and secondary contamination during filtration.
Step 2: Media Contact and Separation
Under pressure, gravity, or vacuum, the fluid is forced through a filter medium.
The pore size and surface structure of the medium determine which particles are trapped.
Physical separation occurs when particles are larger than the pore size.
Chemical separation may also occur via adsorption or ion exchange, such as in activated carbon or resin filters.
Only clean fluid (the filtrate or purified gas) passes through.
Step 3: Impurity Retention and Build-up
Captured particles accumulate on or within the filter medium, forming a filter cake or adsorption layer.
Initially, this layer can enhance filtration performance, but excessive accumulation increases pressure loss.
Step 4: Clean Fluid Outlet
After filtration, the clean liquid or gas exits through the outlet port, ready for the next production step—such as chemical processing, food refinement, or water purification.
Step 5: Filter Maintenance and Regeneration
When pressure differential rises beyond a set limit, maintenance is required:
Replaceable media (filter cartridges or mesh screens) are replaced directly.
Washable media (metal mesh, ceramic membranes) are cleaned using:
Backwashing (reversing flow to remove filter cake)
Chemical cleaning (acid/alkali solutions)
Air scouring (compressed air jets)
2. Filtration Principles by Filter Media Type
Different filter media define how the separation process works.
Below are the four most common filtration mechanisms used in industrial systems:
(1) Surface Filtration
Media: Metal mesh, fiber filters, or filter cloths.
Principle: Impurities are trapped on the surface; pore size defines filtration accuracy (e.g., a 10 µm mesh retains particles >10 µm).
Applications: Liquid clarification (e.g., edible oil filtration), compressed air purification, and dust removal.
(2) Depth Filtration
Media: Diatomaceous earth, quartz sand, activated carbon.
Principle: Impurities are captured inside a porous structure via inertial impaction, adsorption, or diffusion.
Applications: Drinking water purification, chemical decolorization, high-viscosity liquid treatment.
(3) Membrane Filtration
Media: Organic membranes (e.g., PVDF) or inorganic membranes (ceramic).
Principle: The membrane’s molecular-level pores (0.1 nm – 10 μm) selectively separate substances such as colloids, macromolecules, and microorganisms.
Applications: Reverse osmosis (RO) desalination, pharmaceutical-grade pure water, wastewater reuse.
(4) Magnetic Filtration
Media: Permanent magnets or electromagnetic rods.
Principle: Magnetic fields attract ferromagnetic impurities like iron particles or oxides.
Applications: Metalworking fluids, lubricating oils, and metallurgical process streams.
3. Key Factors Affecting Filtration Efficiency
The performance and service life of an industrial filter depend on multiple operational factors:
| Parameter | Influence on Filtration |
|---|---|
| Filtration Accuracy | Determined by pore size (e.g., 5 µm filter removes ≥5 µm particles). Match with cleanliness requirements (e.g., electronics <0.1 µm; cooling water ~50 µm). |
| Operating Pressure | Higher pressure increases flow rate but may cause media damage or fine-particle penetration (“filter breakthrough”). |
| Fluid Viscosity & Temperature | Higher viscosity increases flow resistance; high temperatures require heat-resistant materials (e.g., stainless steel mesh). |
| Impurity Properties | Particle hardness, size, and concentration determine material choice — abrasive particles require durable, wear-resistant media. |
4. Summary — The Essence of Industrial Filtration
The core principle of industrial filtration can be summarized as:
Drive the fluid → Pass through a selective medium → Trap or adsorb impurities → Discharge clean fluid → Regenerate or replace the filter.
By selecting the right filter medium, driving mechanism (pressure or gravity), and system design, industrial filters can deliver everything from coarse particle removal to ultra-fine molecular separation.
They are indispensable in modern industries for product quality assurance, equipment protection, and environmental sustainability.
